Rieter Ring Spinning Mill (75,000 spindles) 2001/14 year

image_pdfimage_print

$0.00

Equipment Details

Opening/Cleaning

2 –  Truetzschler model BDT019/2300 Blendomat bale opener, 1-48 bale laydown,   1- 60 bale laydown, 2300mm width, 2001 yr.

1- Trutzschler model BO-A 2300 Automated Bale opener 60 bale laydown, 2300mm width, 2013 yr

1- Trutzschler SP-MF Multi Separator, 2013 yr.

3- Truetzschler model BOWA1600, 2001 year premixer/feeders w/ LVSA condenser, Stand alone type, 2- with apron, 1- LVSA fed

2 – Truetzschler model AS024 wastefeeder, 2001 year,

3- Truetzschler model MFC Maxiflo coarse cleaners, 2001 year

2- Truetzschler model MPM10/1600,10 cell Multimixer w/ TV425Fan, 2001 year

1- Truetzschler model MX-U ,10 cell Multimixer w/ Transport Fan, 2017 year,

5-  Truetzschler model CXL 3/1600 Cleanomat cleaners, with model BS987/1600 feed trunks, LVSA condensers and distributors, 2001 yr.

5 -Truetzschler model DX Dustex dust extractor With TVD425 fans, 2001 yr.

Carding

12- Trutzschler DK-903 Carding Machines, KH950/1000 Auto Can Changer, Combination Wire, DFK Chute, Autoleveler. 1000mmx1500mm can size, 2000 year

18- Trutzschler TC-03 Carding Machines, 2007 year, 1000mm x1500mm can size, CCA1000 auto can changer, Triple Lickerin, Trutzschler Combination wire, autoleveler.
Drawing
3- Trutzschler model TD9 breaker draw frames w/ 40×48 coiler can changer, power creel 6 ends, 2018 yr.

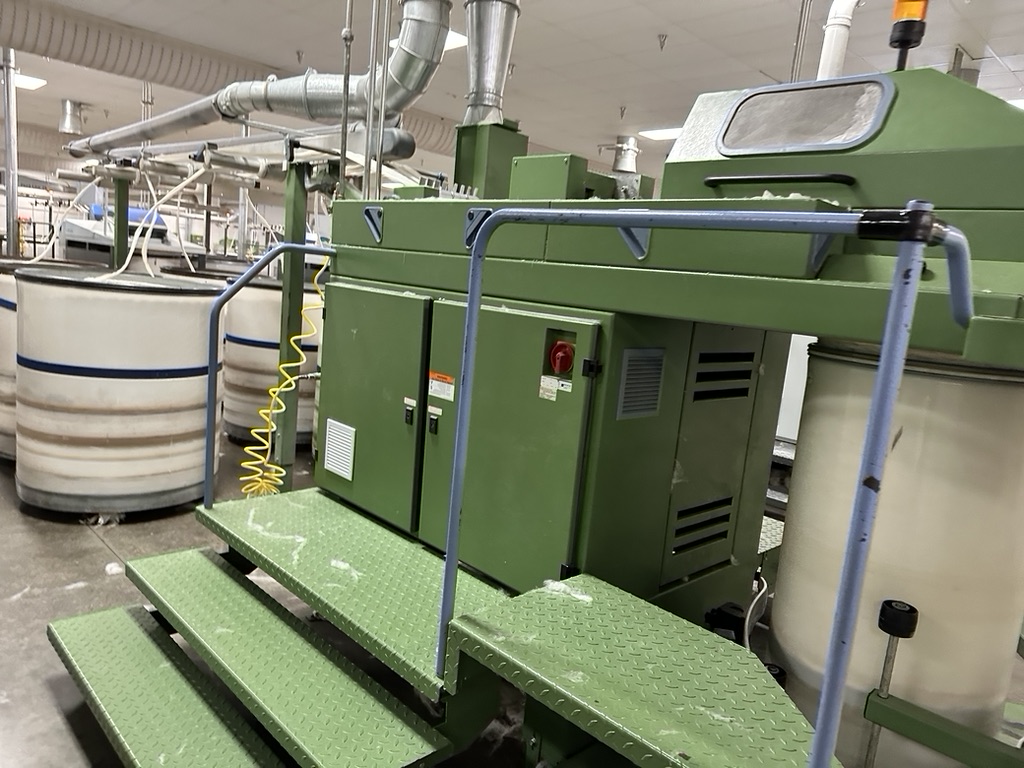

13- Trutzschler model HS 1000, breaker draw frames w/ 40×48 coiler can changer, draft commander PLC static 6 end creel, 2001yr

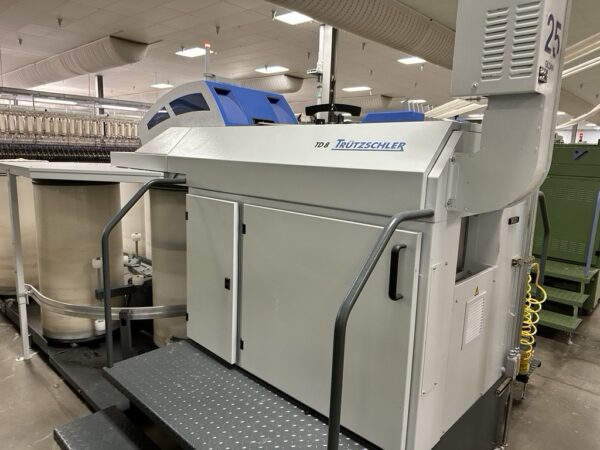

3-  Trutzschler model TD8 finishing draw frames w/ 24×48 can changer, autoleveller, 6 end power creel, 2018 yr.
13- Truetzschler model HSR 1000 finishing draw frames w/ 24×48 can changer, coiler & auto leveller draft commander PLC, power 6 end creel, 2001 yr.
Combing

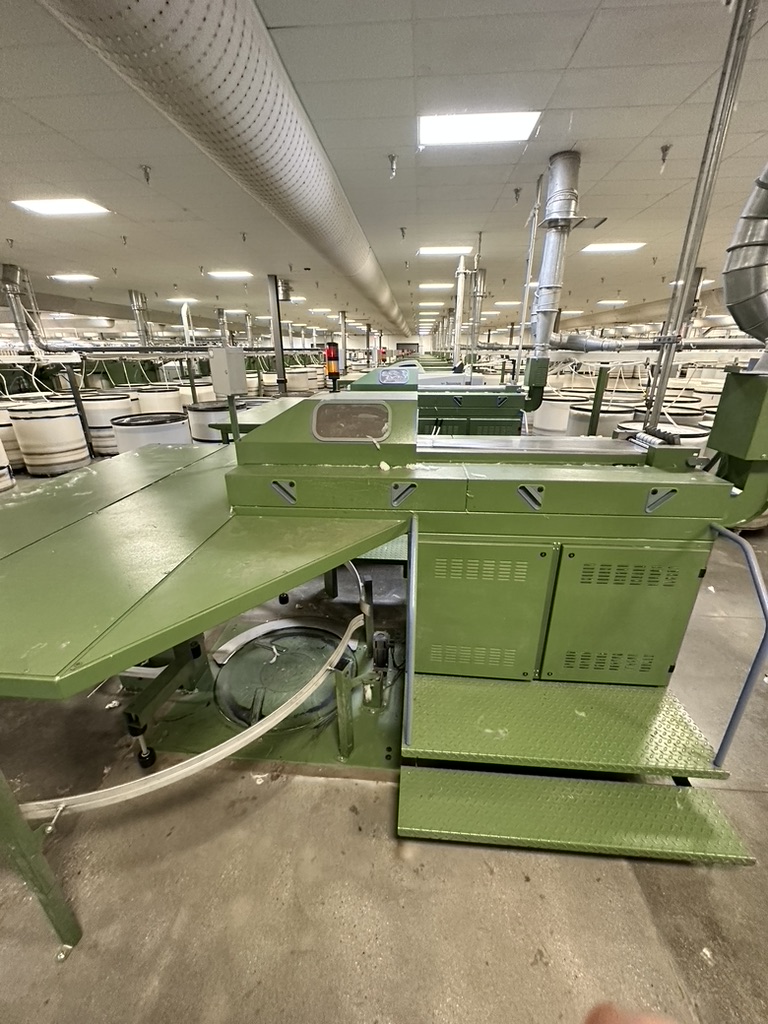

1- Rieter model E32 unilaps, Combing Lap Winders w/ bobbin conveyor, 24 barrel creel, (1) lap rotator, Barco system, touchscreen PLC controls, 2002 yr.

1- Rieter model E25 servo lap overhead transport system, 120 overhead dual rails, eight station transporter, 2002 yr.

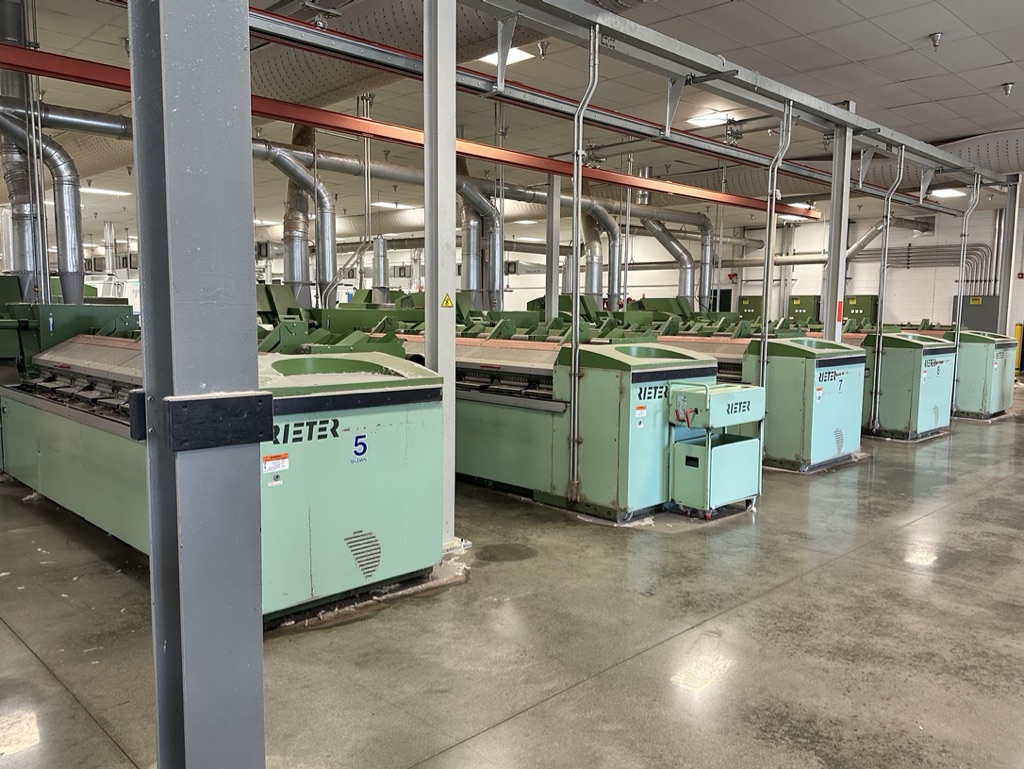

5- Rieter model E72 combers w/ auto doff, touchscreen PLC controls, Barco system, 2002 yr.

Roving

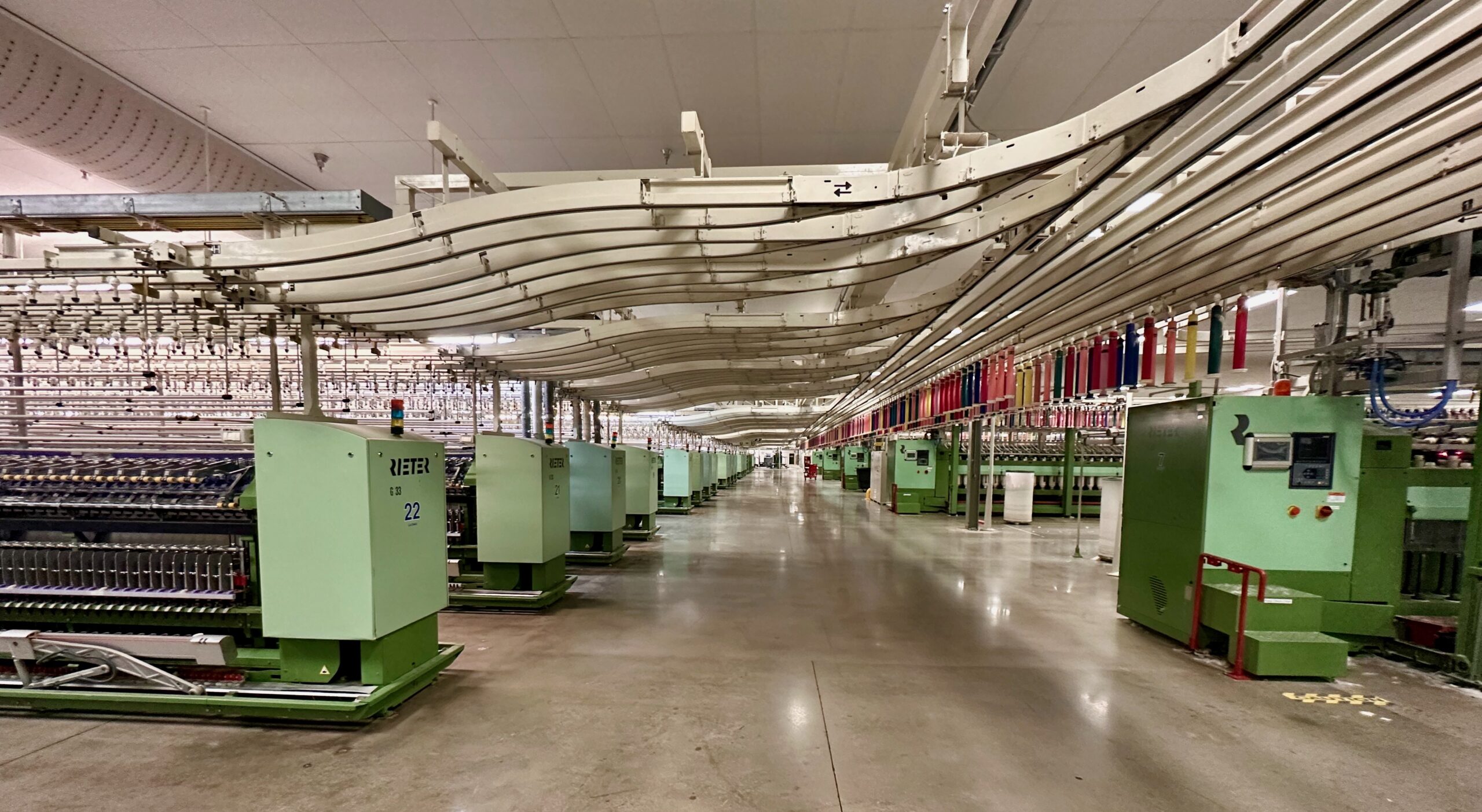

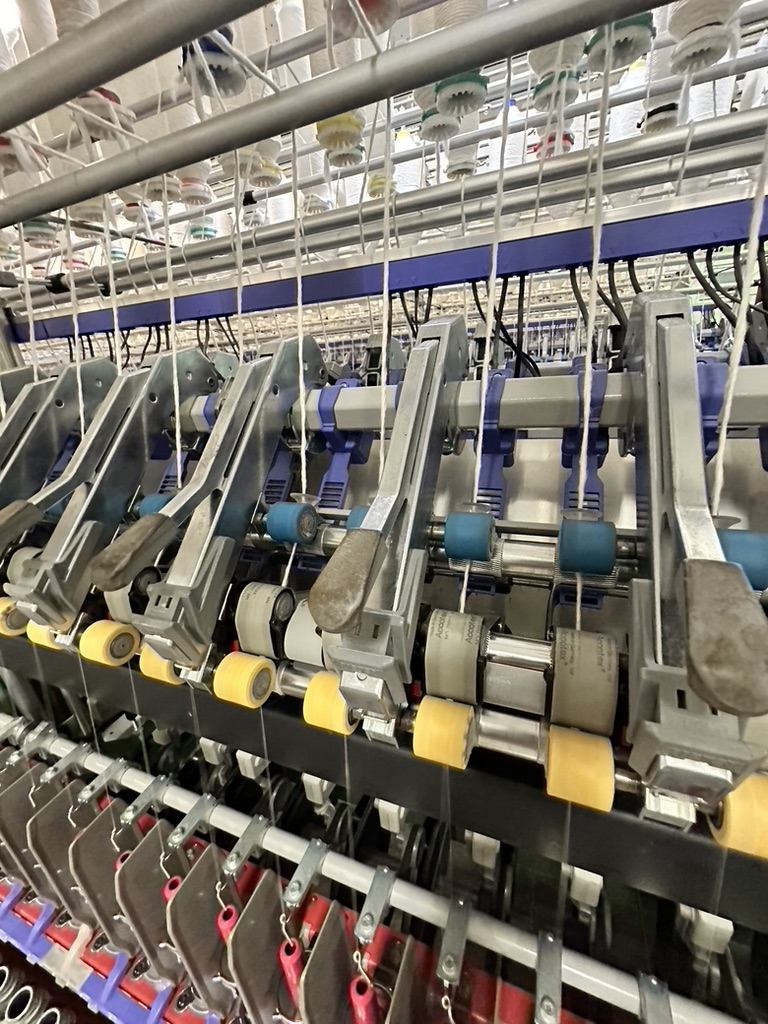

12- Rieter model F33 Roving Frames, 120 spindles, auto doffing, touch screen PLC control, Rieter drafting w/ automated creel & bobbing delivery system, Pinter Caipo Monitoring System, 2001 yr

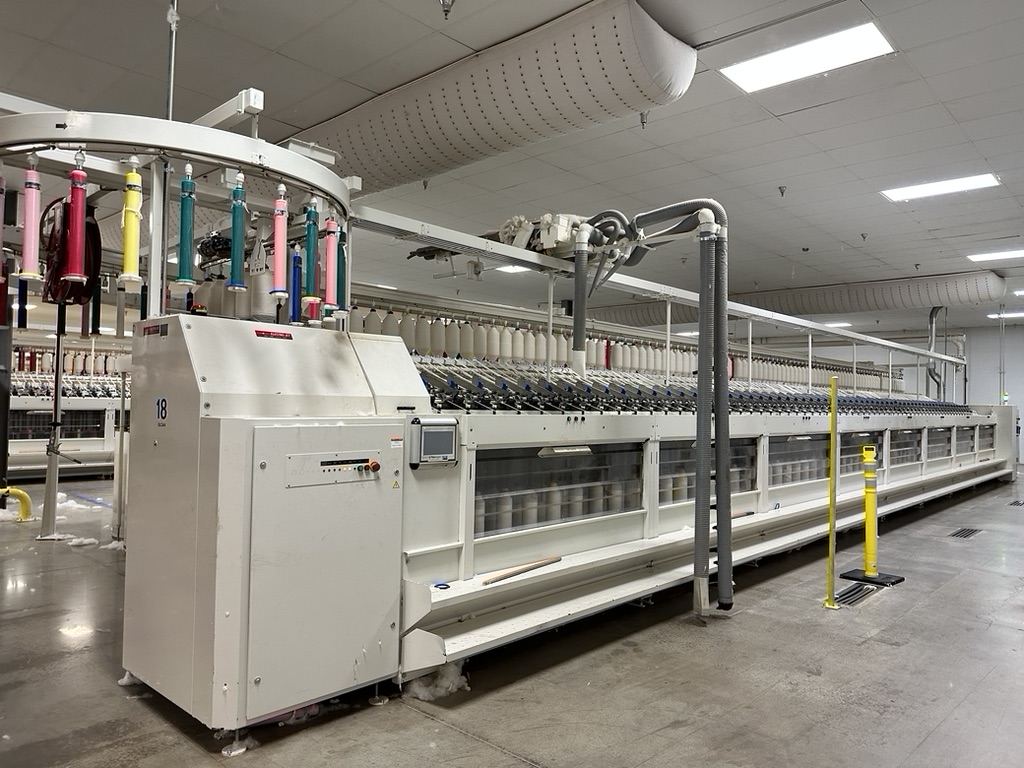

6- Electrojet model Rovematic ADR Roving Frames, 128 spindles, auto doffing, 4- 2013 yr, 2- 2017 yr. Pinter Caipo Monitoring System,
1- Electrojet automatic roving bobbin transportation system, model tab #42 automated central control, (4) model 152 automotors, (2) model DMI bobbin strippers, (2) model Tali inspection stations, (20) lane storage area, overhead rail system, (2) waste collectors Sohler blowers, loaders, 2001yr.

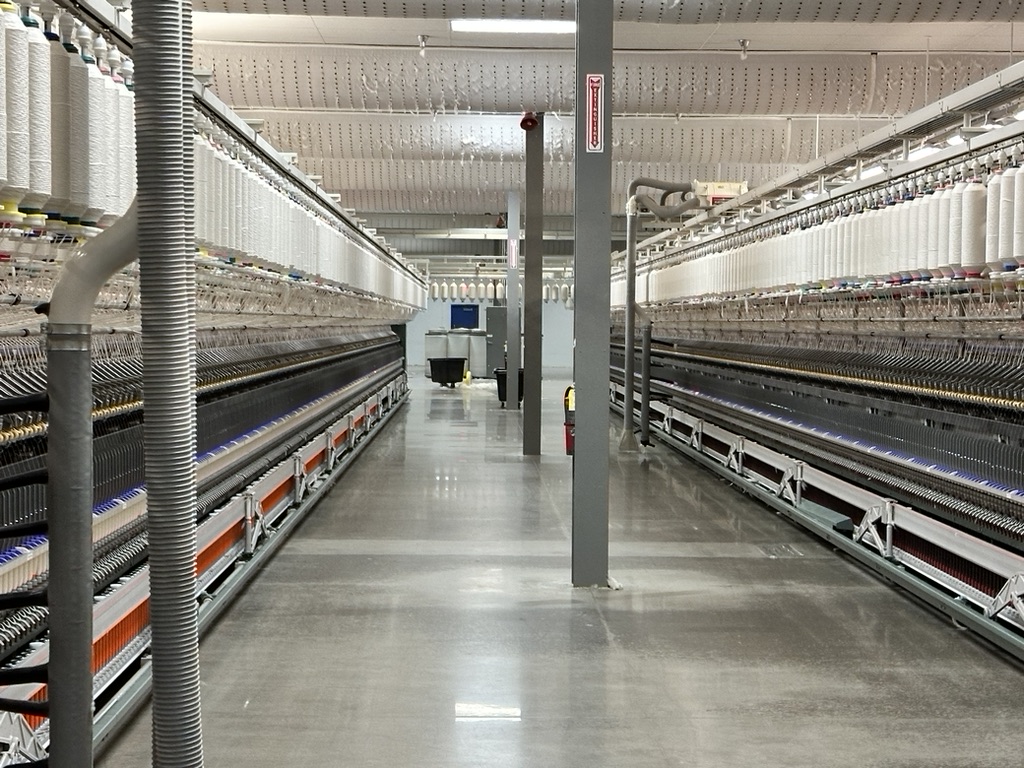

Ring Spinning

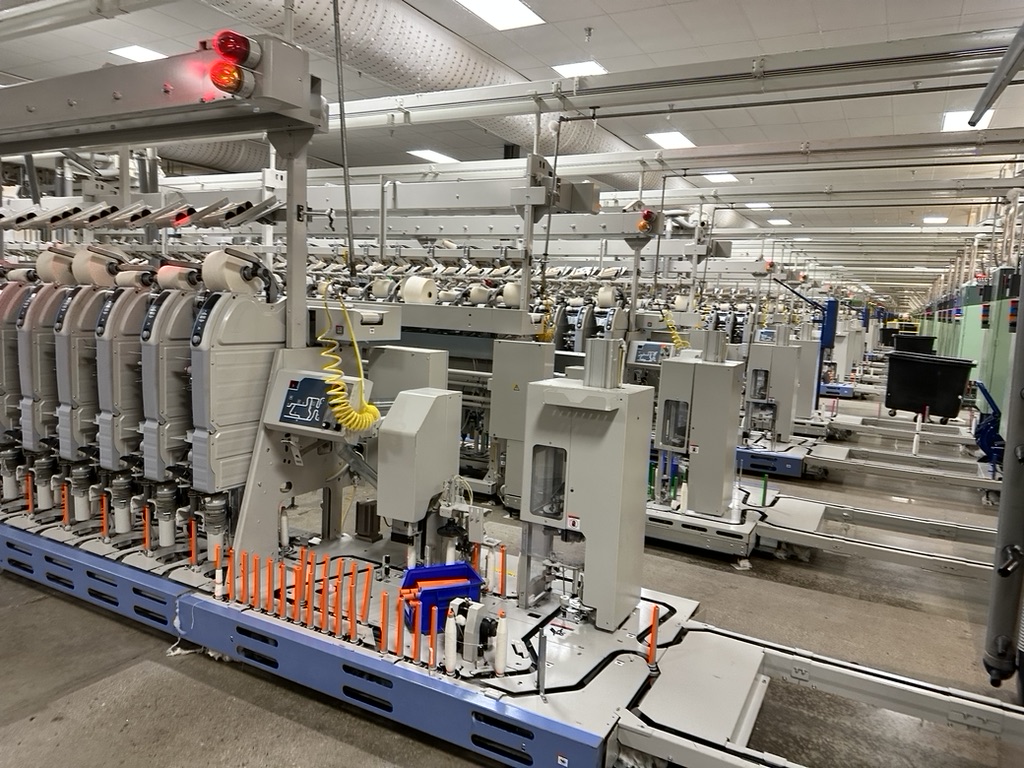

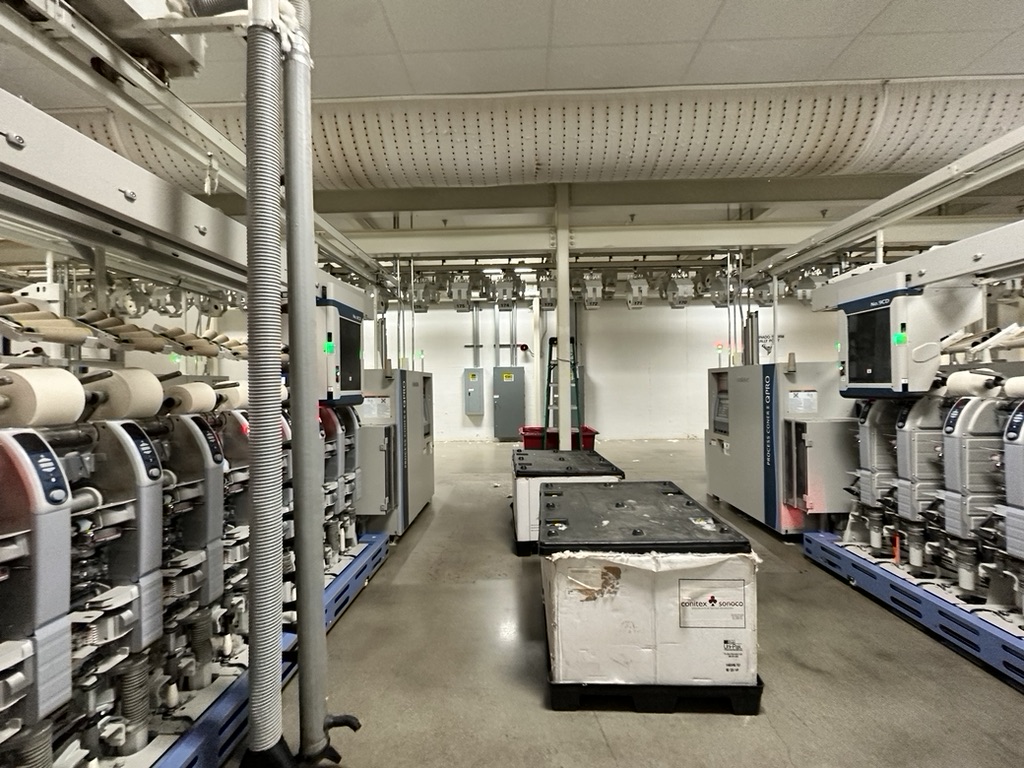

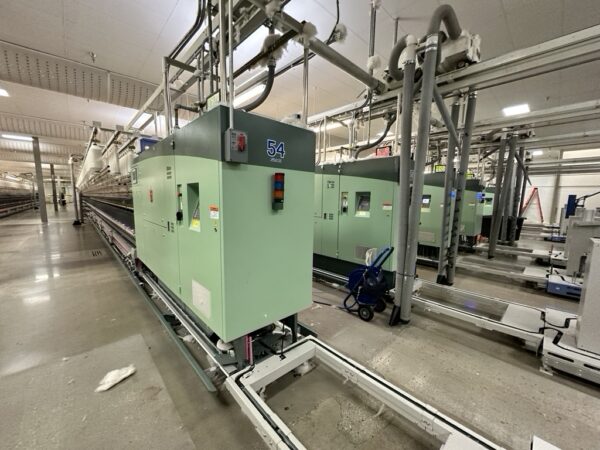

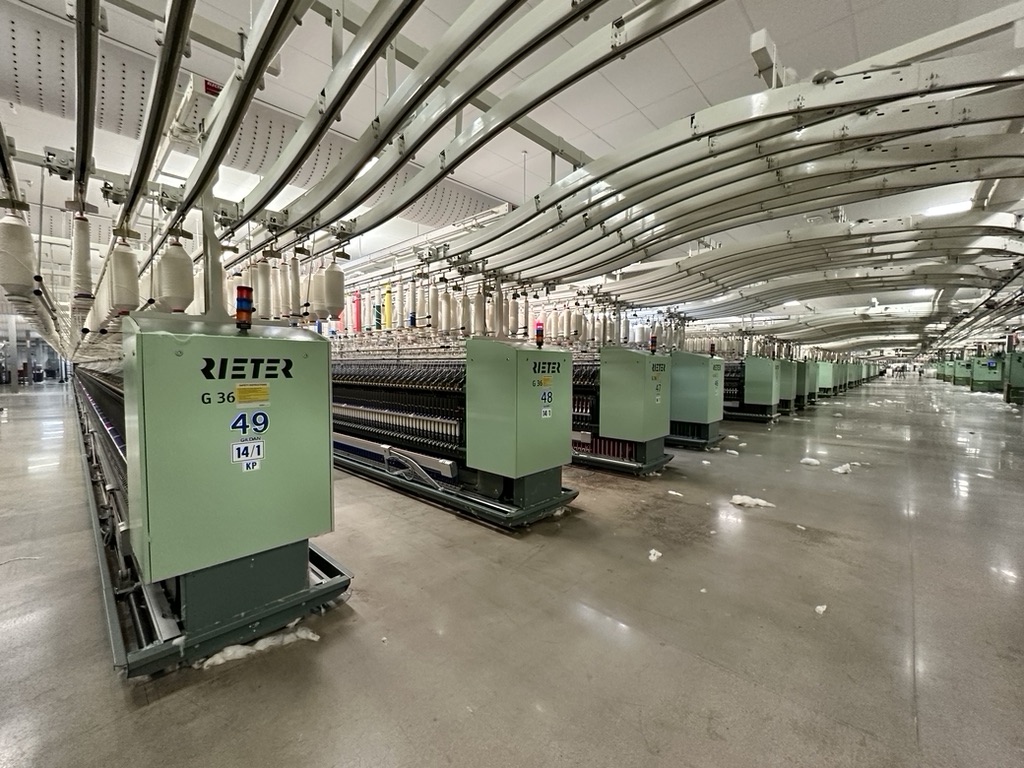

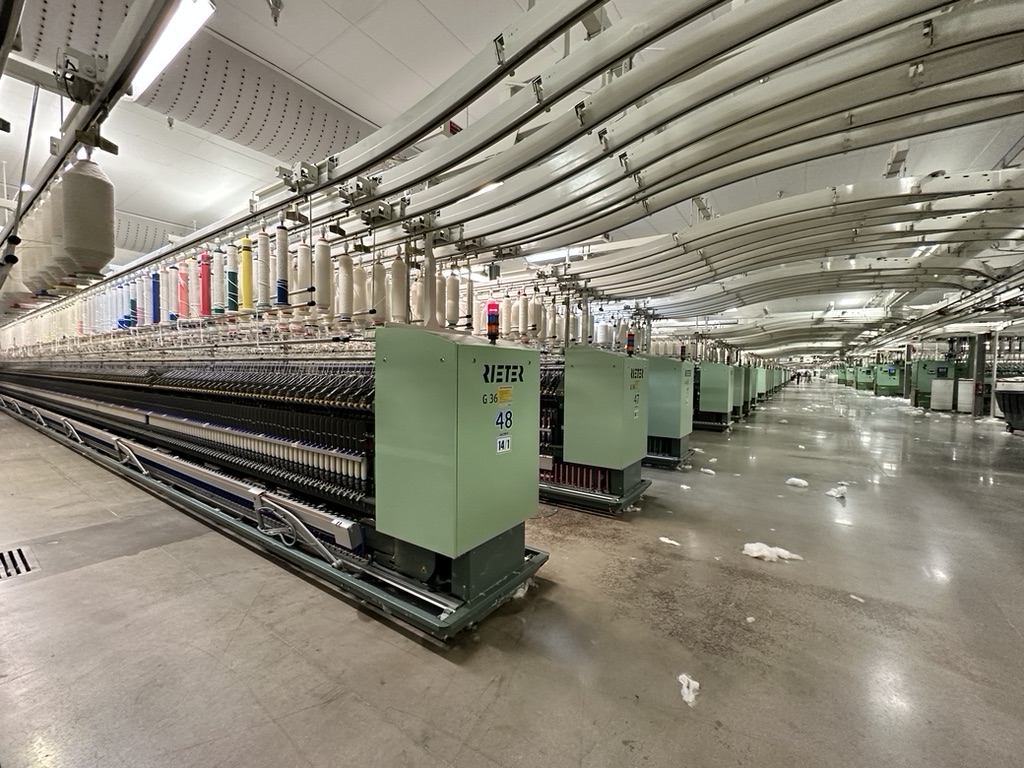

16- Rieter model G36 ring spinners w/ 1200 spindles, auto doffing, link touch screen controls, Rieter drafting, 42 mm ring, 70mm drafting, 210 mm bobbin, 2014 yr. Pinter Caipo Monitoring System, Linked to: Murata Pro winders, 26 spindles, Uster Quantum 3 Clearers, wax, Informator touch screen controls, All machines have 1- blower for ring and 1- blower for winder

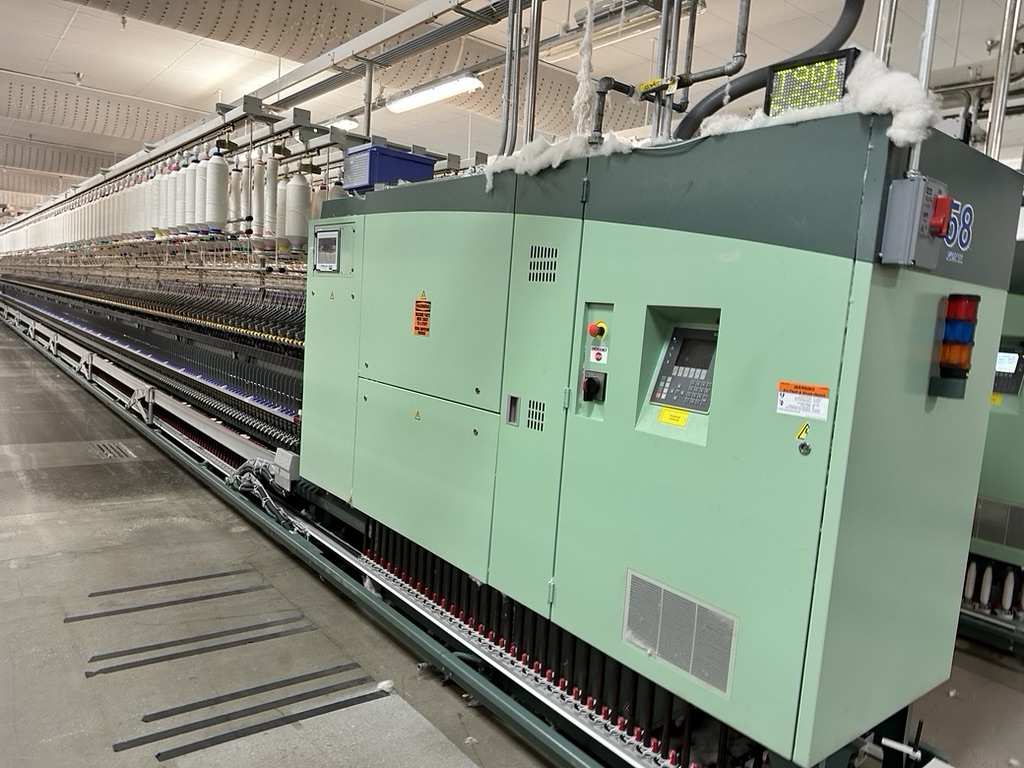

44-  Rieter model G33 ring spinners w/ 1200 spindles, auto doffing, link touch screen controls, Rieter drafting, 42 mm ring, 70mm drafting, 210 mm bobbin, blower, 2001 yr. Pinter Caipo Monitoring System, Linked to: 43-Schlafhorst Autoconer 388, type V winders, 26 spindles, Uster Quantum 3 clearing, wax, Informator touch screen controls, 1- Murata QPro II, 2019 yr., 28 positions, Uster Quantum 3 Clearing with “plus run” feature. All machines have 1- blower for ring and 1-blower for winder

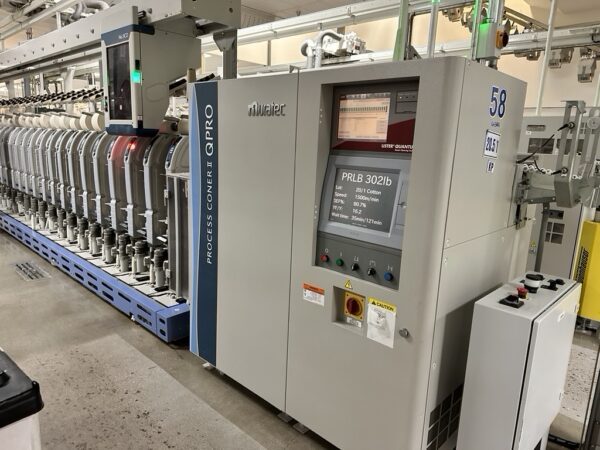

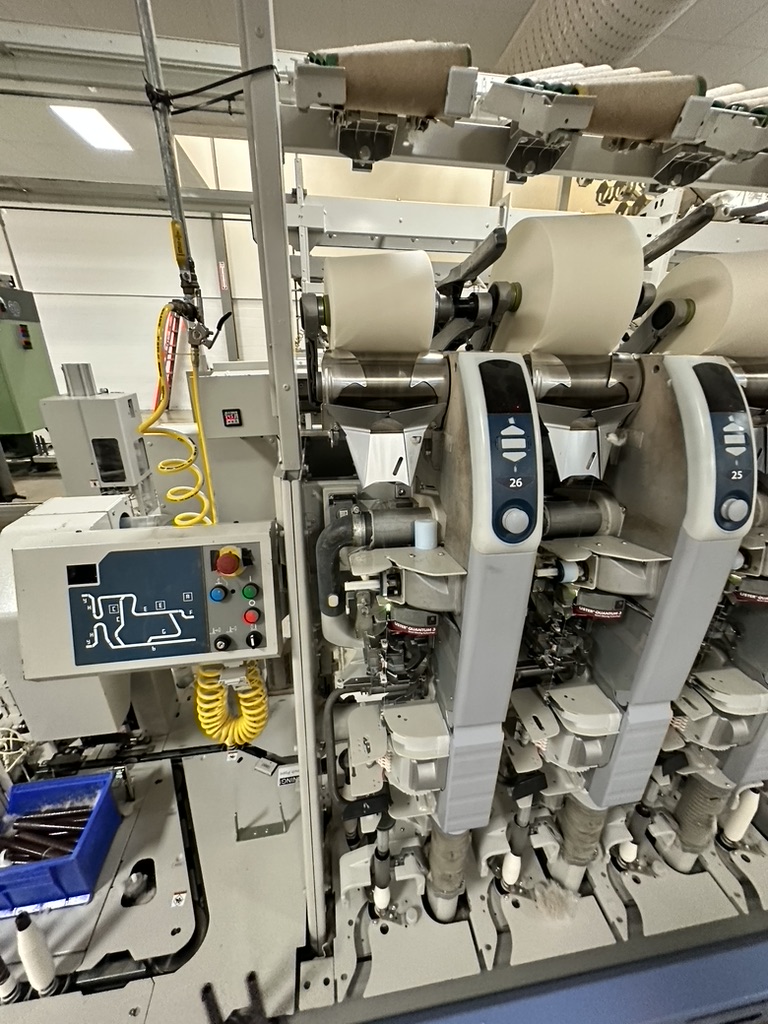

13-  Murata II Q-Pro Ex Automatic Cone winders, Model 9LC, 28 positions, Uster Quantum 4 clearing, 9CD Autodoffer, wax, FFD, Bobbin  stripper/Bobbin exchanger, Upper yarn sensor, S-Feed, OHTC, Plus Run, Dust collector.) 2023 yr. **Brand new in Crates. (Purchased To be installed on G33 ring machines)**

Misc

1- Welker Model CONDIBOX Yarn Conditioner, 2017 yr 99C temp, 460 volt
